  • Sovtek MIG100 - Input jack issues - Schematic and pics inside.. Help would ROCK..

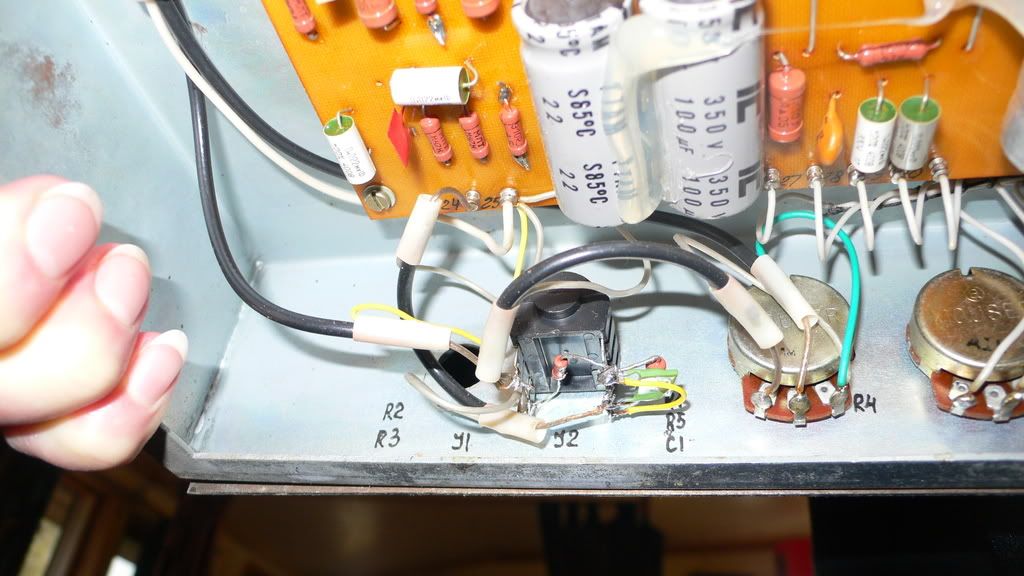

    So the "high" input jack was uninstalled at some point from my MIG100. When I went to look at reconnecting it, I found no wires inside to solder to it. I looked at the schematic and it looks like there are 3 wires going to each input. In mine all the visible wires attached to the "low" input jack. I'm terribly confused and could use some help if possible. Below is a link to the schematic and below that are pics of the input jack itself.

    http://www.freeinfosociety.com/electronics/schematics/audio/sovtekmig100h.pdf

    Too many guitars to list.. (Mostly PRS's, Vintage Gibson, J Customs)
    Too much studio/rack gear to list...
    Too many pedals to list..

    55 great deals on HC
    http://acapella.harmony-central.com/...&postcount=265

  • #2
    Looks like the wires and associated components were removed altogether. You are going to have to redo that section from scratch.

    Comment


    • #3
      nice fingernailsoke:
      got a question about TITAN amps? ask me
      here

      my website

      TITAN AMPS on myspace


      My band:Last Comes Gunfire

      Comment


      • #4
        seriously, though...is there a wire connected to V1 pin 7? that should be the first gain stage for the high input.
        got a question about TITAN amps? ask me
        here

        my website

        TITAN AMPS on myspace


        My band:Last Comes Gunfire

        Comment


        • #5
          the MIG100 is different from the MIG100H
          not the same schematic
          Gibson Les Paul Custom 1973 (Bare Knuckle Black Dog/The Mule)
          Gibson SG Worn Chrome (Bare Knuckle Riff Raff/Cold Sweat)
          Paul Reed Smith CE-22 (Seymour Duncan Custom Shop El Diablo)
          Hurricane Les Paul Custom (Bare Knuckle Cold Sweat)
          Marshall JMP Lead 1973 (50w, heavily modded)
          Zambelli Hyperdrive 50
          Jet City JCA20H
          Vox AC4TV8
          Marshall 1960A (MG Music Black Dog x Scumback H75 speakers)

          Comment


          • #6
            nice fingernailsoke:


            Not mine, friend held amp for me to take pic
            Too many guitars to list.. (Mostly PRS's, Vintage Gibson, J Customs)
            Too much studio/rack gear to list...
            Too many pedals to list..

            55 great deals on HC
            http://acapella.harmony-central.com/...&postcount=265

            Comment


            • #7
              hopefully said friend has tits
              got a question about TITAN amps? ask me
              here

              my website

              TITAN AMPS on myspace


              My band:Last Comes Gunfire

              Comment


              • #8
                hopefully said friend has tits


                Uhh, yeah she does. Is my wife's best friend.



                I'm wondering why the hell someone uninstalled the high output stuff though.. doesn't make any sense.
                Too many guitars to list.. (Mostly PRS's, Vintage Gibson, J Customs)
                Too much studio/rack gear to list...
                Too many pedals to list..

                55 great deals on HC
                http://acapella.harmony-central.com/...&postcount=265

                Comment


                • #9
                  Humm. Too bad mine's at the practice space. I'd pop the chassis open and take a pic of it to show you what it should look like. Unfortunately, it's an hour away... If you manage to find the actual MIG 100 schematic (and not the 100h), let me know.
                  The Hot Rod Owner's Club

                  Dirt for life.
